YX7833

The YX7833 device provides a dual bridge motor driver solution for toys, printer mechatronic applications.

    • 產品特性

    • 應用場景

  • Wide 2.5V-to-15V Input Voltage Range

  • Two Internal Full-Bridge Drivers, drive one or two brush DC motors, one bipolar stepper motor, Solenoids and other inductive loads

  • Low MOSFET On Resistance ( HS:500mΩ; LS:500 mΩ)

  • Internal Charge Pump for the High-Side Driver

  • High output Current Capability 1A RMS, 1.6A Peak per H-Bridge, 2A RMS in Parallel Mode (at VVM=5V, +25℃）

  • PWM control interface

  • Supports 1.8V, 3.3V and 5V logic inputs

  • Integrated current regulation

  • Low-power sleep mode (<60nA at VVM=5V,TJ=25℃)

  • Integrated protections feature

  • VM undervoltage lockout

  • Auto-retry overcurrent protection

  • Thermal shutdown

  • Fault Indication Pin (nFAULT)

  • Thermally Enhanced Surface-Mount Packages

  • 16-pin ETSSOP with PowerPAD, 5.0×6.4 mm

  • 16-pin WQFN with PowerPAD, 3.0×3.0 mm

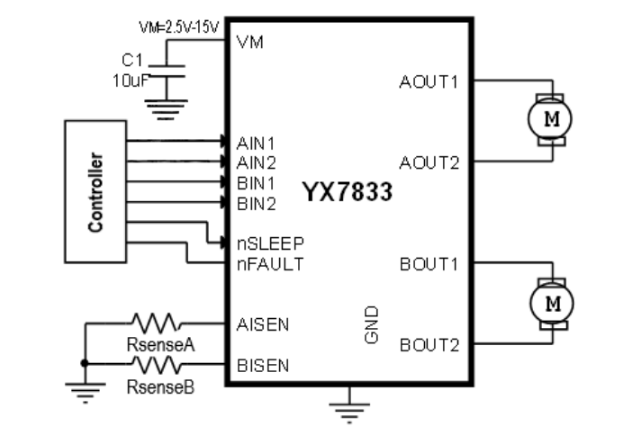

  • YX7833.png

  • Robotics

  • Point-of-Sale Printers

  • Portable Printers

  • Toys

  • Video Security Cameras

  • YX7833.png
